DIAMOND ANTENNA SDC1

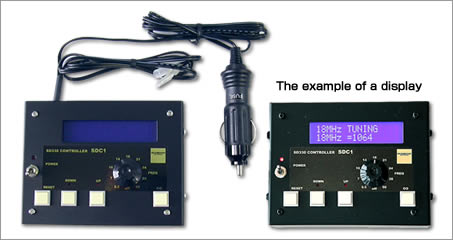

SDC1: Turing controller for SD330

Dimensions: 85(W)x 120(D)x 32(H)mm
Weight: 380g
Frequency: 3.5/7/10/14/18/21/24/28(29)/50MHz
Band Operation time:
3.5MHz→HOM→3.5MHz approx. 160 sec.
7MHz→HOM→7MHz approx. 50 sec.
14MHz→HOM→14MHz approx. 20sec.
*HOM –Operation standard position (Lowest position of the coil)
Power supply voltage & current: DC12V (9-14.5V) 200mA
